Products:
Suitable to process wood, coconut shell, walnut shell, apricot shell, hemp pole, sawdust, rice husk, bamboo, coffee grounds, palm shell and other materials into charcoal briquette.
Charcoal briquette production line is a process of making charcoal briquettes from raw materials such as logs, bamboo, branches, agricultural waste, etc. through crushing, carbonization, briquette making, drying. Charcoal briquettes have the advantages of high density, small volume, good combustibility, smokeless, odorless and non-toxic. Charcoal briquettes have a wide range of applications and are widely used in heating, barbecue and other industries. In the industrial field, they are alternative raw materials for coal and heavy oil. They are also used as supplementary fuel for boilers because their density is close to that of coal and their calorific value is 5500-7000 kcal/kg, but their ash content is significantly lower than that of coal. Jiutian Machinery is a professional charcoal briquette machine making company with its own factory and R&D team, providing equipment at factory prices and professional services.

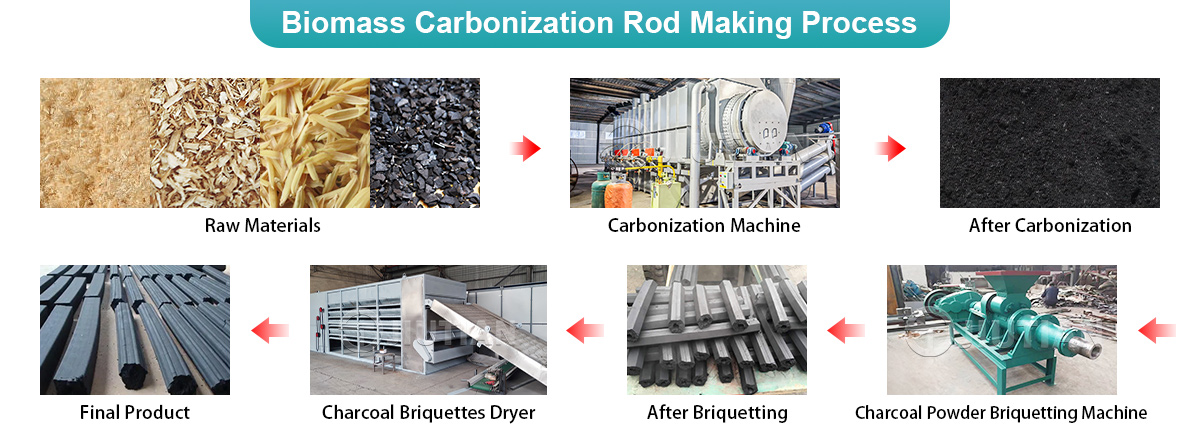

Generally, the entire production process can be divided into four parts.
1. Crushing
The raw materials for making charcoal briquettes can be wood, branches, bamboo, sawdust, coconut shells, rice husks, peanut shells, etc. After a certain amount of raw materials are prepared, they are crushed in a crusher to less than 5mm. However, if the raw materials are already in powder form, such as sawdust or bamboo powder, this step should be omitted.
2. Carbonization
Put the crushed raw materials into a biomass carbonization machine, and the raw materials will be dry distilled and carbonized without oxygen under high temperature conditions.
3. Briquette making
The charcoal powder obtained after carbonization is sent to charcoal powder briquetting machine and compressed into a predetermined shape of charcoal briquettes (cube, small circle, square, oval, pillow and strip) with a certain strength.
4. Drying
After the charcoal briquettes are dried by the charcoal briquette dryer, they can be stored or packaged.
1. Strong material adaptability. Biomass with a moisture content of less than 20% and a particle size of less than 30 mm can be carbonized;
2. The quality of carbon products is good, and the carbonization rate is high. Carbon products can be used not only as fuel carbon, but also as raw materials for agricultural carbon, metallurgical carbon and activated carbon;
3. Strong carbonization depth control ability. The residual volatile matter of charcoal products is 10-25%, which can be controlled on demand;
4. The equipment is safe and environmentally friendly, stable in operation and long in service life. Choose a large number of new materials and new processes, adopt patented technology design, precision production, after a lot of practical tests, every detail is perfect, to ensure the quality of each set of equipment.
| Model | Diameter(mm) | The drum length(m) | Carbon capacity(kg/h) | Drum speed(rpm) | Dimension(m) |
| JTTJ1010 | 1000 | 10 | 100-200 | 1.5-2.5 | 10.0*1.7*2.8 |
| JTTJ1210 | 1200 | 10 | 200-300 | 1.5-2.5 | 10.0*2.0*3.0 |
| JTTJ1410 | 1400 | 10 | 400-500 | 1.5-2.5 | 10.0*2.2*3.2 |
| JTTJ1612 | 1600 | 12 | 600-800 | 2.0-3.0 | 10.0*2.4*3.5 |
| JTTJ1912 | 1900 | 12 | 900-1100 | 2.0-3.0 | 12.0*2.8*3.8 |
| JTTJ2212 | 2200 | 12 | 1200-1500 | 2.0-3.0 | 12.0*3.2*4.2 |
| JTTJ2512 | 2500 | 12 | 1600-2000 | 2.0-3.0 | 12.0*3.5*4.5 |
| JTTJ3012 | 3000 | 12 | 2200-2600 | 2.0-3.0 | 12.0*4.0*5.0 |
| JTTJ3612 | 3600 | 12 | 3000-3800 | 2.0-3.0 | 12.0*4.6*5.6 |
The equipment is suitable for a variety of materials,Welcome to consult customer service at any time, we will customize the equipment according to your needs.
